ATI

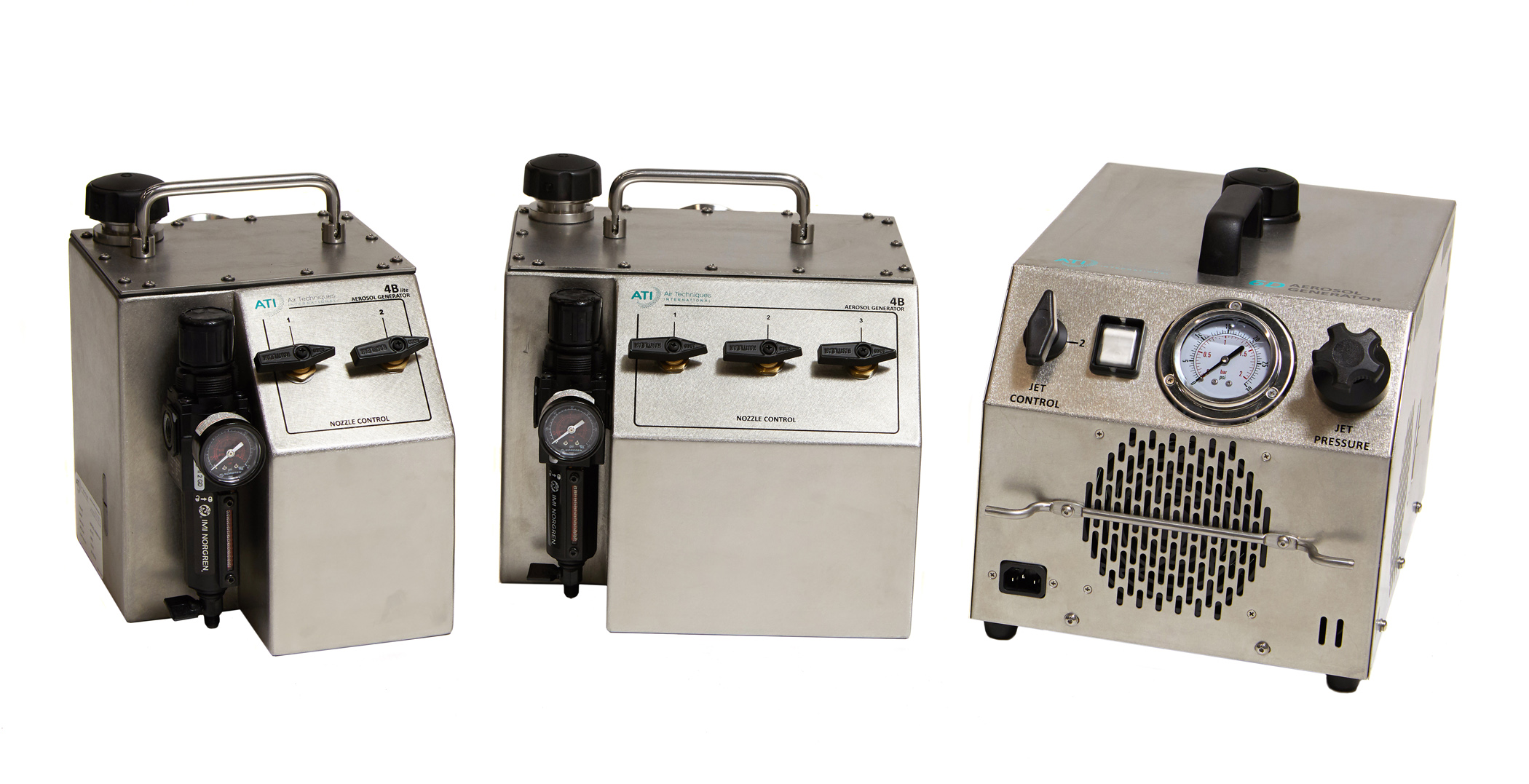

Aerosol Generators(4B/4B Lite)
- 제품설명
- PAO 측정을 위해 에어로졸 타입의 오일을 분사하는 장치
- 압축공기 연결로 간편하게 에어로졸을 발생
- 4B - 6 Nozzle Generator
- 4B Lite - 3 Nozzle Generator
| 4B | 4B Lite | |
| Dimension (L x W x H) | 25 cm x 28 cm x 26 cm (10 in. x 11.25 in. x 10.5 in.) | 19 cm x 28 cm x 26 cm (7.6 in. x 11.25 in. x 10.5 in.) |
| Weight | 7.3 kg (16 lb) | 5.5 kg (12 lb) |
| Aerosol Output | 50 – 8,100 cfm | 50 – 4,050 cfm |
| Concentration* | 100 μg/l @ 810 cfm 10 μg/l @ 8,100 cfm | 100 μg/l @ 405 cfm 10 μg/l @ 4,050 cfm |
| Generator Type | Six Laskin-Nozzle Style Aerosol Generator (1 to 6 Laskin-Nozzles) | Three Laskin-Nozzle Style Aerosol Generator (1 to 3 Laskin-Nozzles) |
| Compressed Air | min 2.65 cfm/nozzle @ 20 psig | |
| Aerosol Type | Polydispersed (cold) | |
| 4B Dimension | (L x W x H) 25 cm x 28 cm x 26 cm |
|---|---|
| 4B Weight | 7.3 kg |
| 4B Aerosol Output | 50 - 8100 cfm |
| 4B Concentration | 100 μg/l @ 810 cfm 10 μg/l @ 8,100 cfm (6 Laskin Nozzles) |
| 4B Lite Dimension | 19 cm x 28 cm x 26 cm |
| 4B Lite Weight | 5.5 kg |
| 4B Lite Aerosol Output | 50 – 4,050 cfm |
| 4B Lite Concentration | 100 μg/l @ 405 cfm 10 μg/l @ 4,050 cfm (3 Laskin Nozzles) |
4B A4 rev B.pdf
